ESP8266 Serial WiFi Module - WiFi Killer

Date: 2020-2-3 Ajue Code Tinkering Views: 2635 Comments: 21

Some time ago, I bought an ESP8266 and planned to play with it. In reality, it has been idle for several months, and then it was dragged to 2020.


ESP8266 is a WiFi IoT module with a wide range of practical applications. In simple terms, its function is to receive data from WiFi and output it through the serial port, and receive data from the serial port and output it through WiFi.




This thing is technically mature and low-cost, so the price is only a dozen yuan.

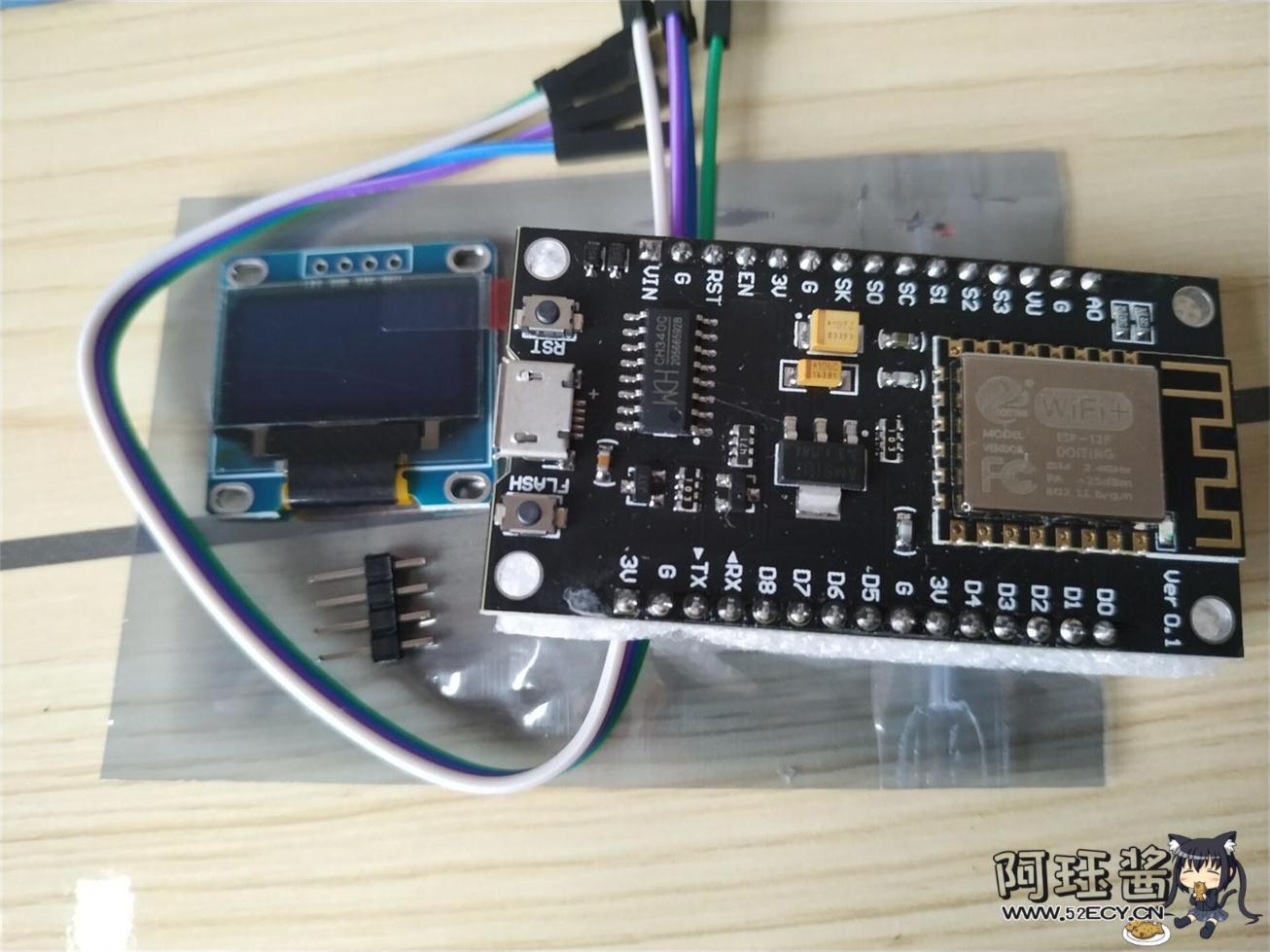

Unboxing: I bought a package with an OLED LCD screen (prepared for playing with interesting things in the future)




The most classic one should be the WiFi Killer. So let's first flash a WiFi Killer firmware to play with.


Firmware: https://github.com/samdenty/Wi-PWN?wi-pwn=7.0


The principle is to send a deauthentication packet to make the client think that the router needs to disconnect itself, thereby disconnecting from WiFi. It can also forge a router to send deauthentication packets to the client, causing the client to actively disconnect from the WiFi connection. It also supports custom hotspot forgery (batch generation of fake WiFi signals).




Connect the computer with a data cable that can transmit data, and try to plug it into the back of the desktop computer if possible.


After plugging it in, the Windows system will automatically install the driver, as shown in the figure below. Remember this COM port.




You also need to install the ch341ser driver, which is the USB to serial port CH341/CH340 WINDOWS driver installation package. Install it as prompted. This needs to be downloaded separately.




Firmware burning

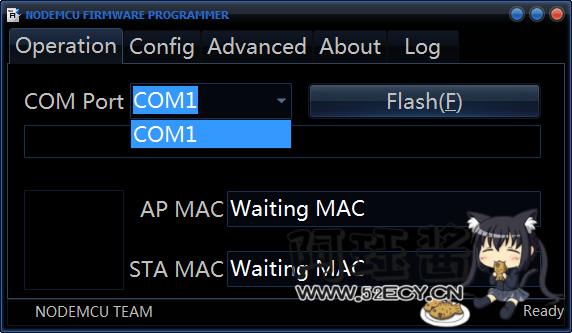

I used the NodeMcu FIRMWARE PROGRAMMER burning tool here.

  1. In the "operation" section, select the COM port you saw earlier, or check which port your ESP8266 development board is plugged into in the device manager.

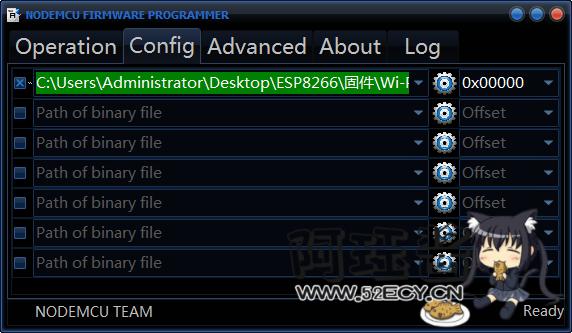

2. In the "config" section, select your firmware address, and leave the rest as default.

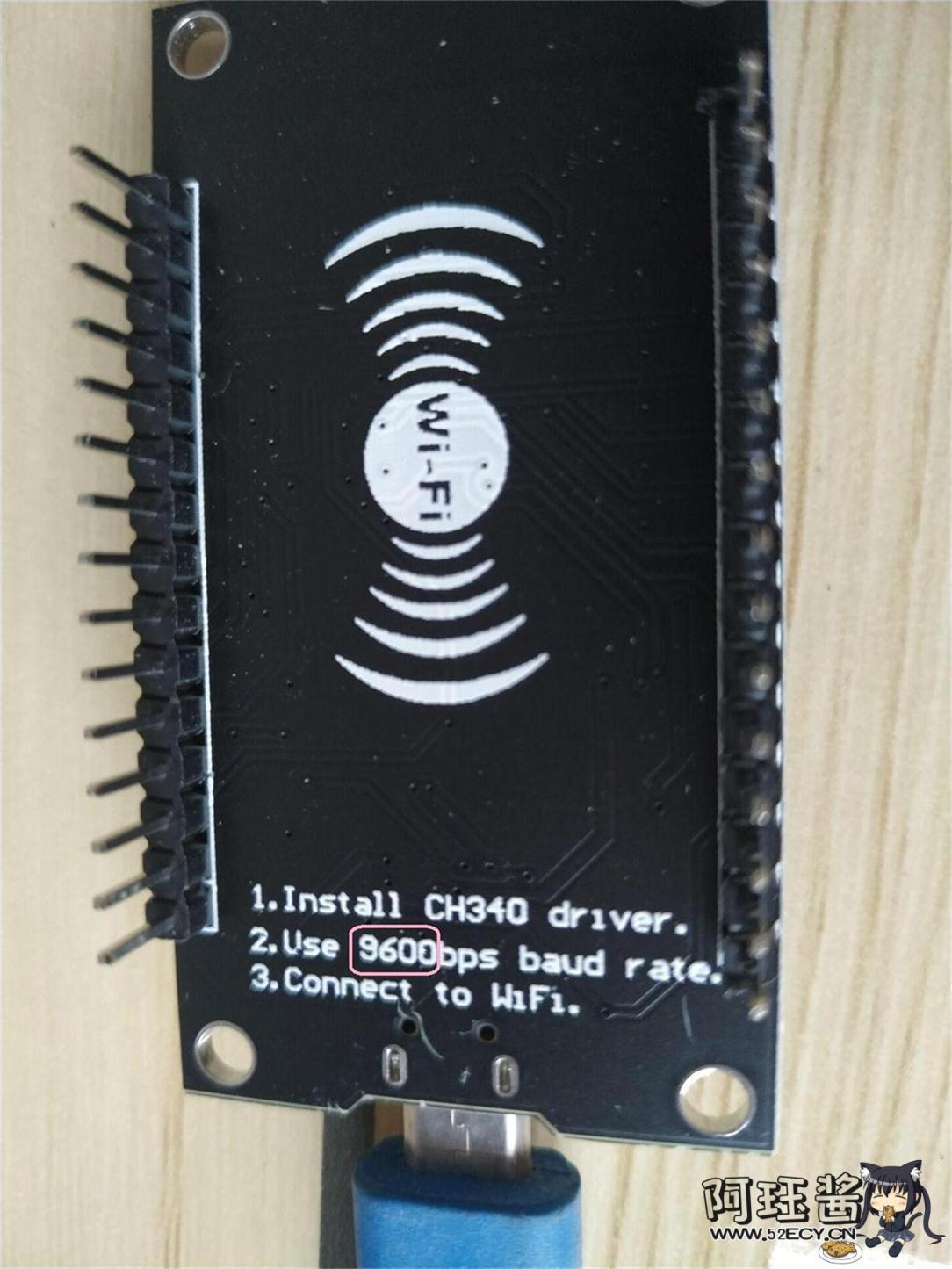

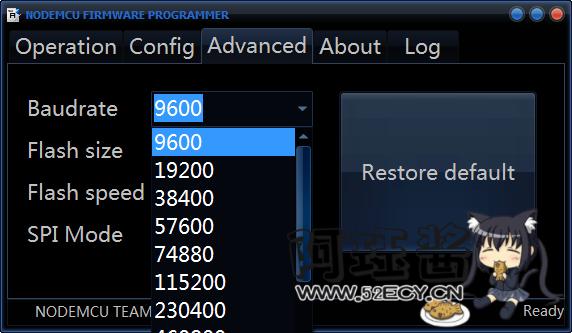

3. In "Advanced - Baudrate", the baud rate depends on what is written on the back of your development board.
As shown in the figure, the circled area.
After configuring, click the Flash (F) button to start burning. This process may take a while, so just wait patiently.

After the burning is completed, unplug and plug it in again. After successful burning, a public WiFi named "wi-pwn" should appear.
After connecting, open the backend of this WiFi in the browser, http://192.168.4.1/, and follow the instructions.

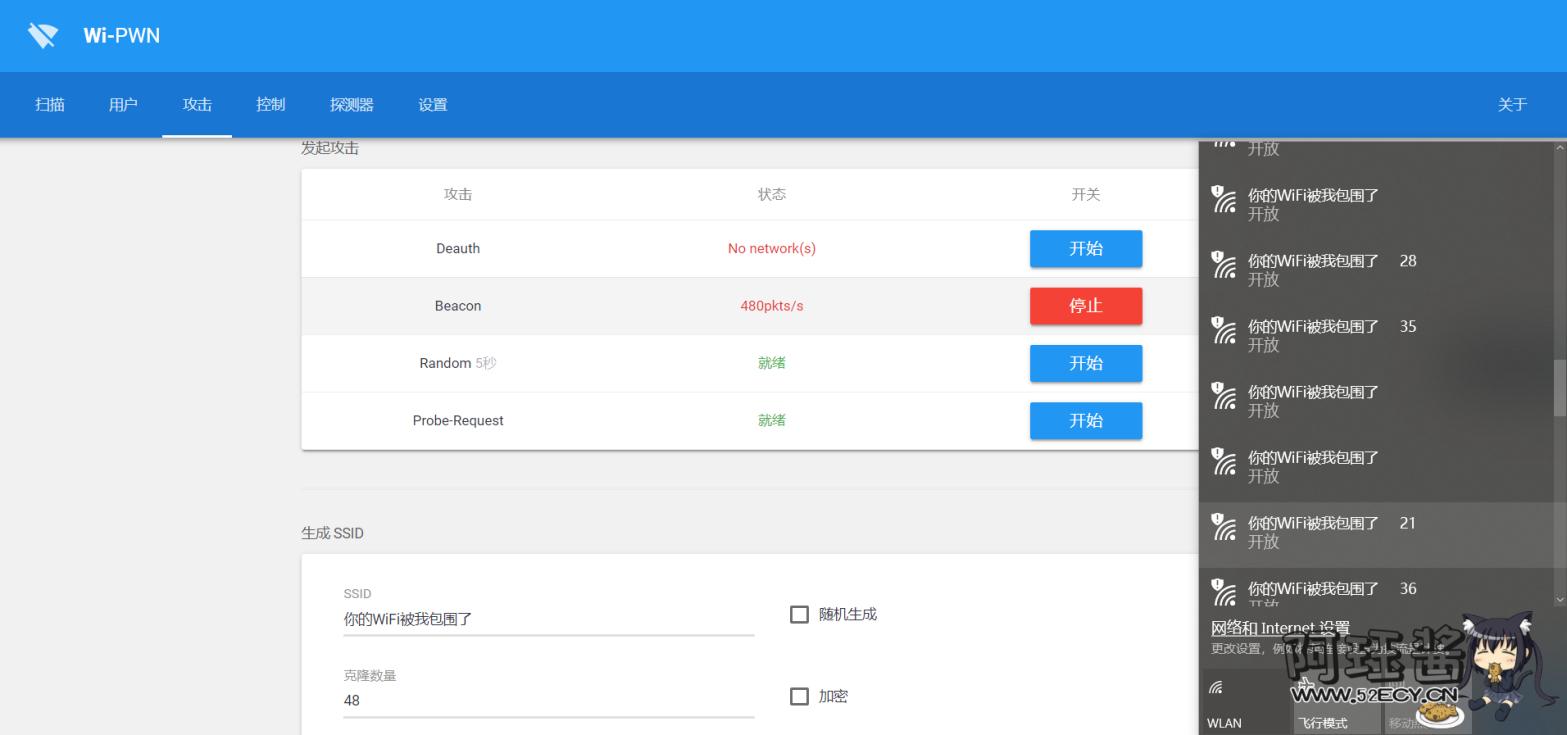

Here, I will demonstrate batch WiFi forgery. Click "Beacom" to start working.

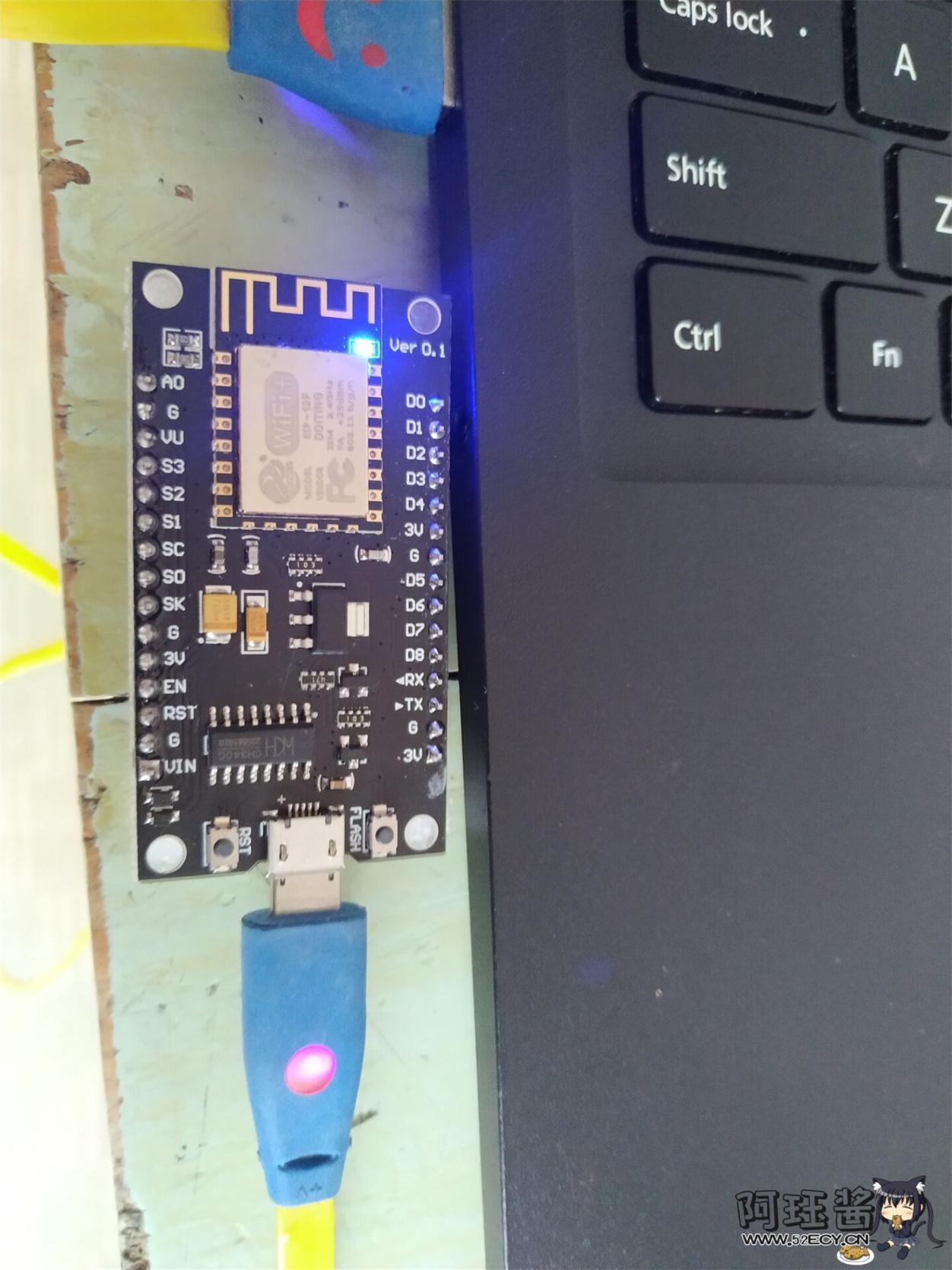

Working status, running, blue indicator light flashing constantly

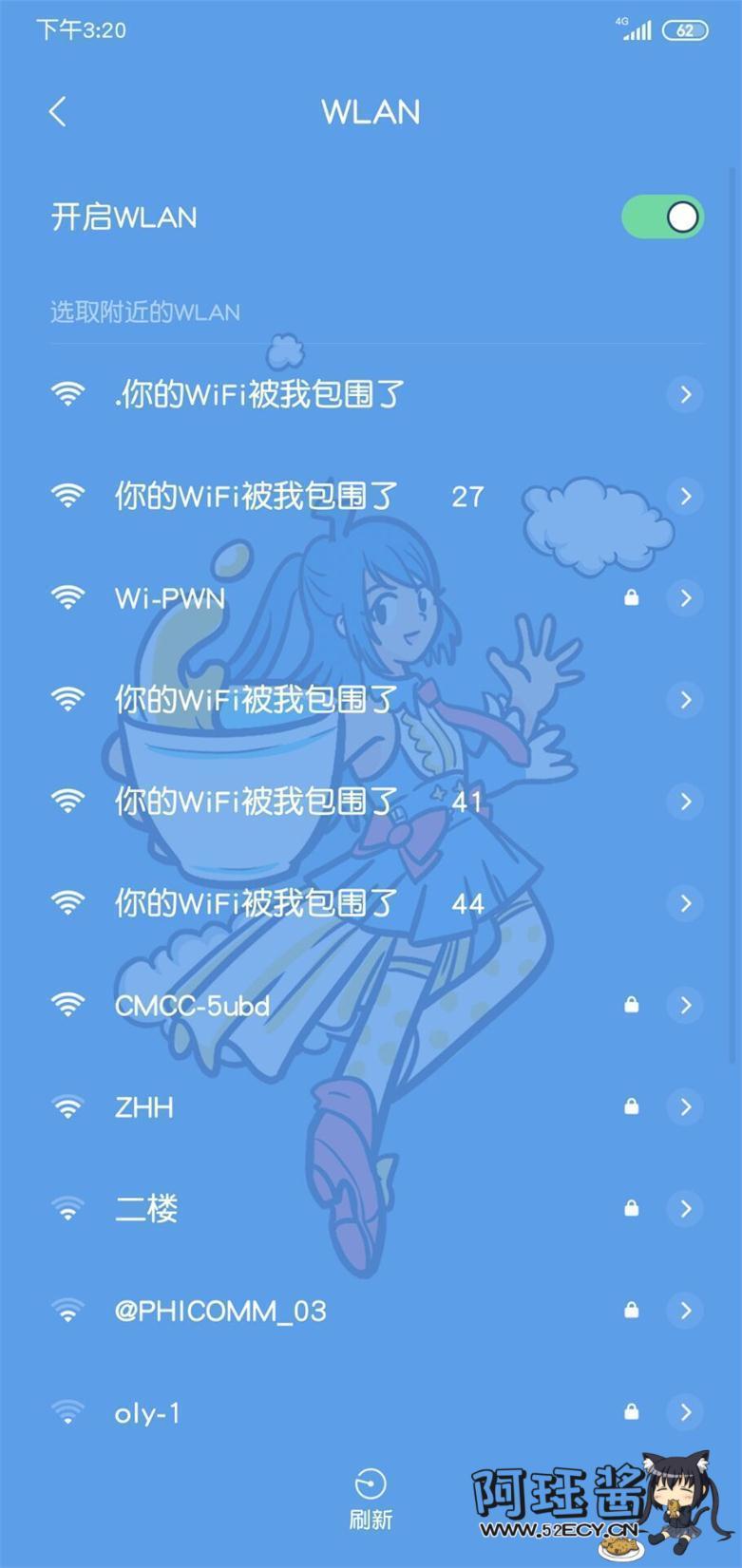

I don't know why my phone can only find a few.
There are many other functions that I won't try one by one.
Summary: There is nothing to summarize. This is my first time playing with it, so I recorded the whole process and shared my experience.
This time I used a ready-made firmware. Next time, it will be my turn to write my own firmware..............To be continued
